TRIPLE LIFE COATINGS
(95% ZINC 5% ALUMINIUM)

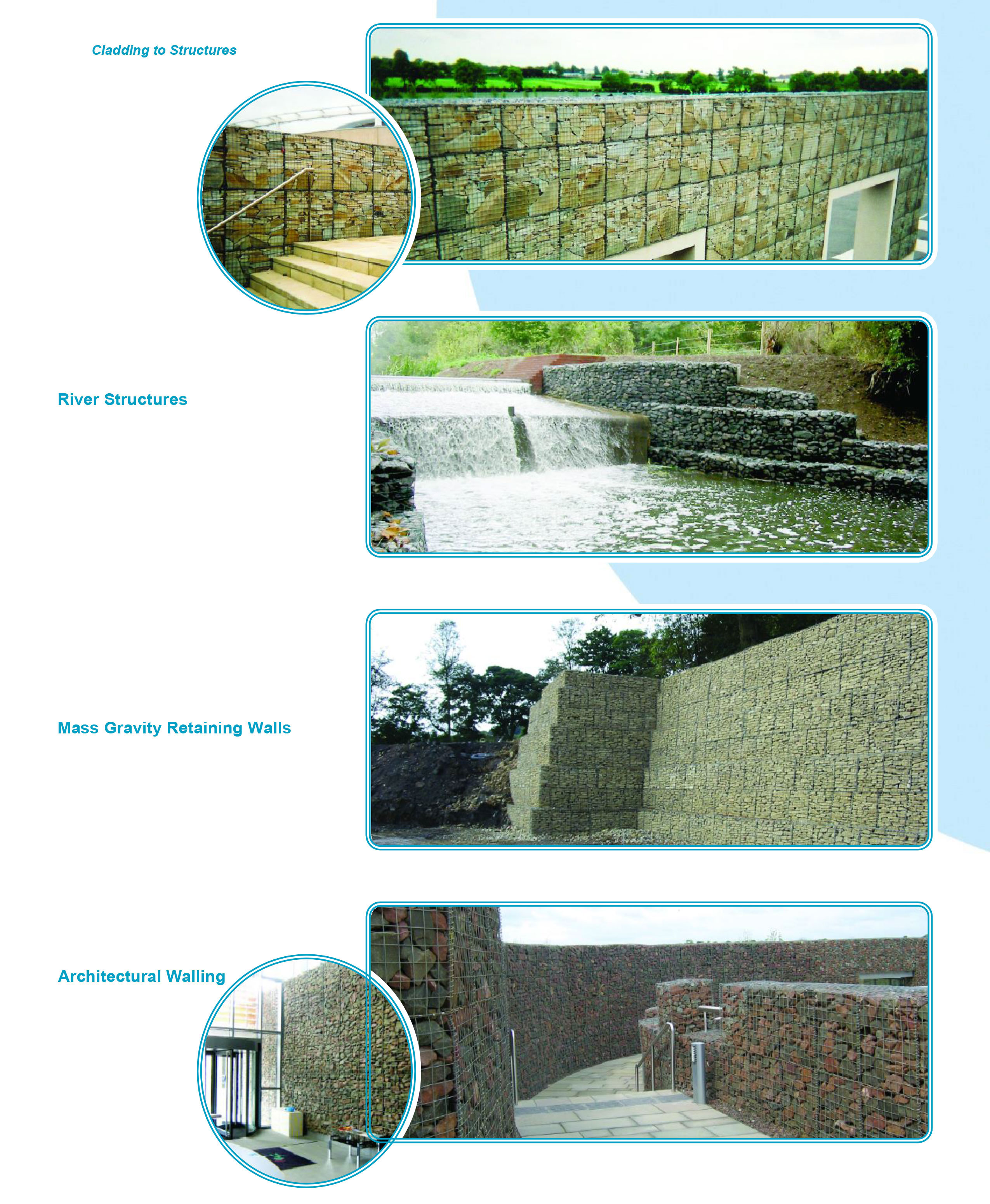

For non aggressive applications:

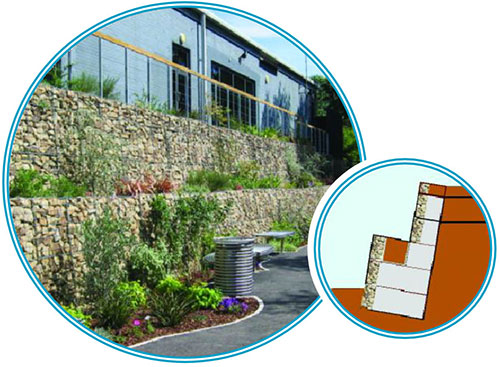

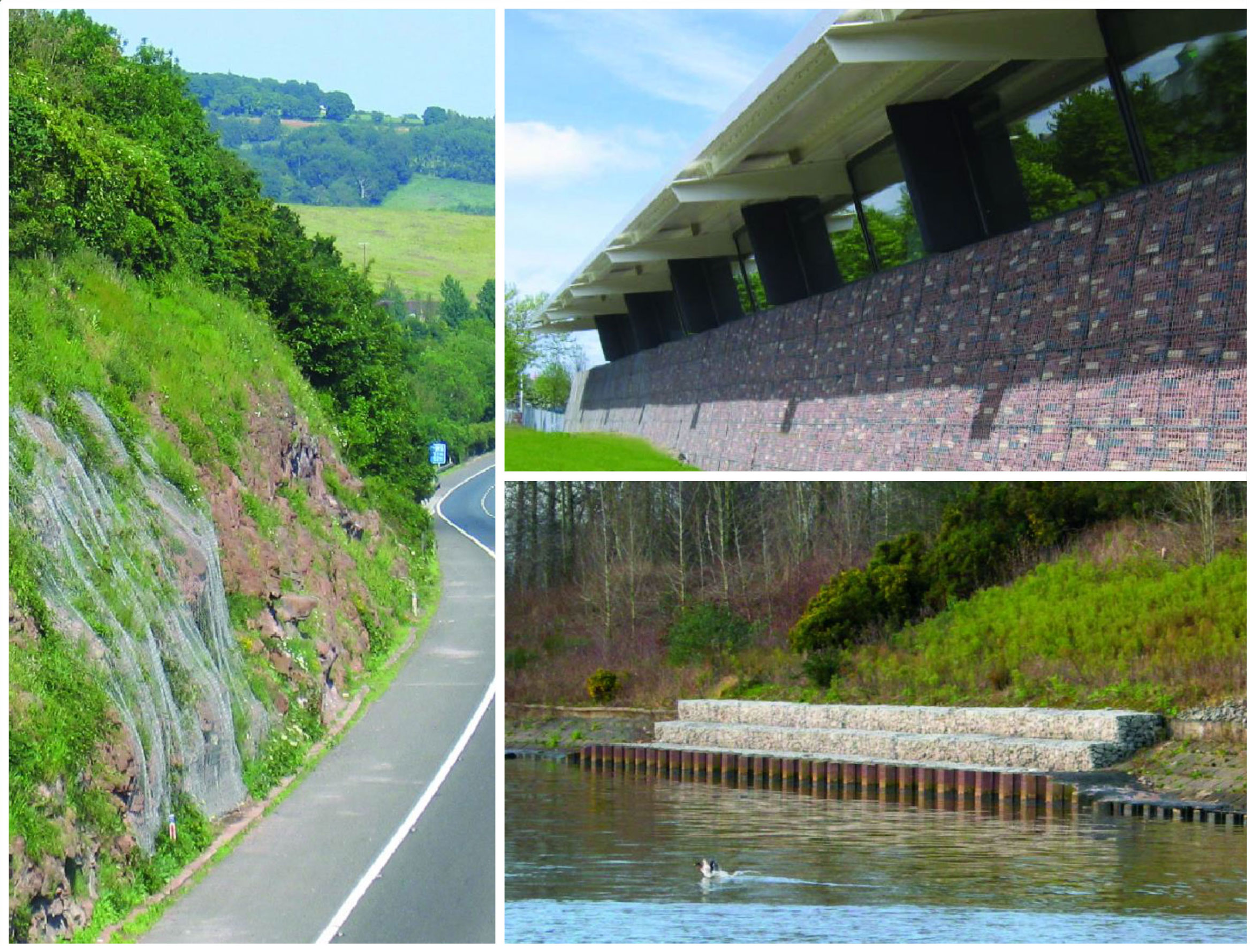

Retaining structures in non aggressive environments Fresh water applications Cladding of structures Free standing walls Gabion fencing Rockfall protection. PVC-ZINC COATINGS

For structures in aggressive applications: Saline water environments Retaining structures subject to salt spray Landfill structures Rockfall protection

STAINLESS STEEL

For structures in aggressive applications or for architectural structures.

TRIPLE LIFE COATED GABIONS:

Gabions shallbemanufacturedfromharddrawnwelded wire, mesh size 76.2mm x 76.2mm (available in wire diameters 3.0mm, 4.0mm,5.0mm).

The wire shall be coated with Triple Life corrosion protection (95% Zinc 5% Aluminium) having a minimum coat weight of 240 grams per square metre.

The gabion units shall be supplied with appropriate lacingwire or helicals for assembly and erection. All wire to conform to BS1052.

PVC-ZINC COATED GABIONS:

Gabions shall be manufactured from hard drawn welded wire, mesh size 76.2mm x 76.2mm with zinc and green PVC coatings(availableinwire diametersof3mm\3.50mmand3.8\4.3mm),product name 'MASTERPLAX'.'MASTERPLAX'isproducedtothe following internationalstandards... Wire to BS1052. Zinc coating to BSEN10244-2:2001. PVCcoatingsystem,fusionbondmethodaccordingto DIN3036 part2andASTM-F688-88typeclass2b. Class2bPVC-coatedwirehasthePVCcoatingfused and adhered to a primer that is cured on to the galvanizedsteelcorewire. Minimumcoatingthicknessis 0.25mm.

ThemeshcomplieswithBS2782Part5,usingmethod540B (IS04892), asrequiredbythe'WhiteBook'6.26/4- August 1994. Hy-Ten Welded Mesh Gabions comply with the Highways Agency White Book specification, as detailed in section: 6.26/4,andamended August1994,andandthenewEuropean /British Standards BSEN10223-8:2013.

WIRE
Whereflexibilityoftheunitisrequired (e.g. erosion control structures) a3mm wire is suitable.
For structural works 2m to 3m high, a 3mm wire diameter is normally adequate. However, some deflection of thefacemayoccur ifthefill to the units is not hand packed on the face of the structure. To improve the quality of installation and alignment, the units can be specified with a heavier facing mesh in 4mm or 5mm wire

For structural works 3m to 6m high, a 3mm wire diameter with a heavier facing mesh of 4mm or 5mm wire is normally adequate.

For structures over 6m, it is recommendedtouse5mm wireforthe lower courses, changing to 4mm for the upper courses.

For specialist applications such as architectural facings where a high quality of construction is required, the minimum wire diameter should be 4mm.

EXAGONAL MESH GABION BOX

HEXAGONAL MESH GABION BOX is a container that made by weaving the wire into hexagonal mesh. It is divided into several cells by inserting diaphragms every meter. The different parts of it are connected by the lacing wire. And the hexagonal mesh is reinforced by the thicker selvedge wires for higher bearing capacity and longer lifespan.

In addition ,hexagonal mesh gabion box has huge deform ability, so it can be easily amended on site to

Hexagonal mesh gabion box is mainly used for protecting river and dam from the losing of soil and water. Because compared with welded gabion box, there are no welding point on hexagonal mesh gabion box, which can resist the erosion from flood and sea water. Additional, the twisted structure can supply higher tensile strength to be used in the heavy duty application.

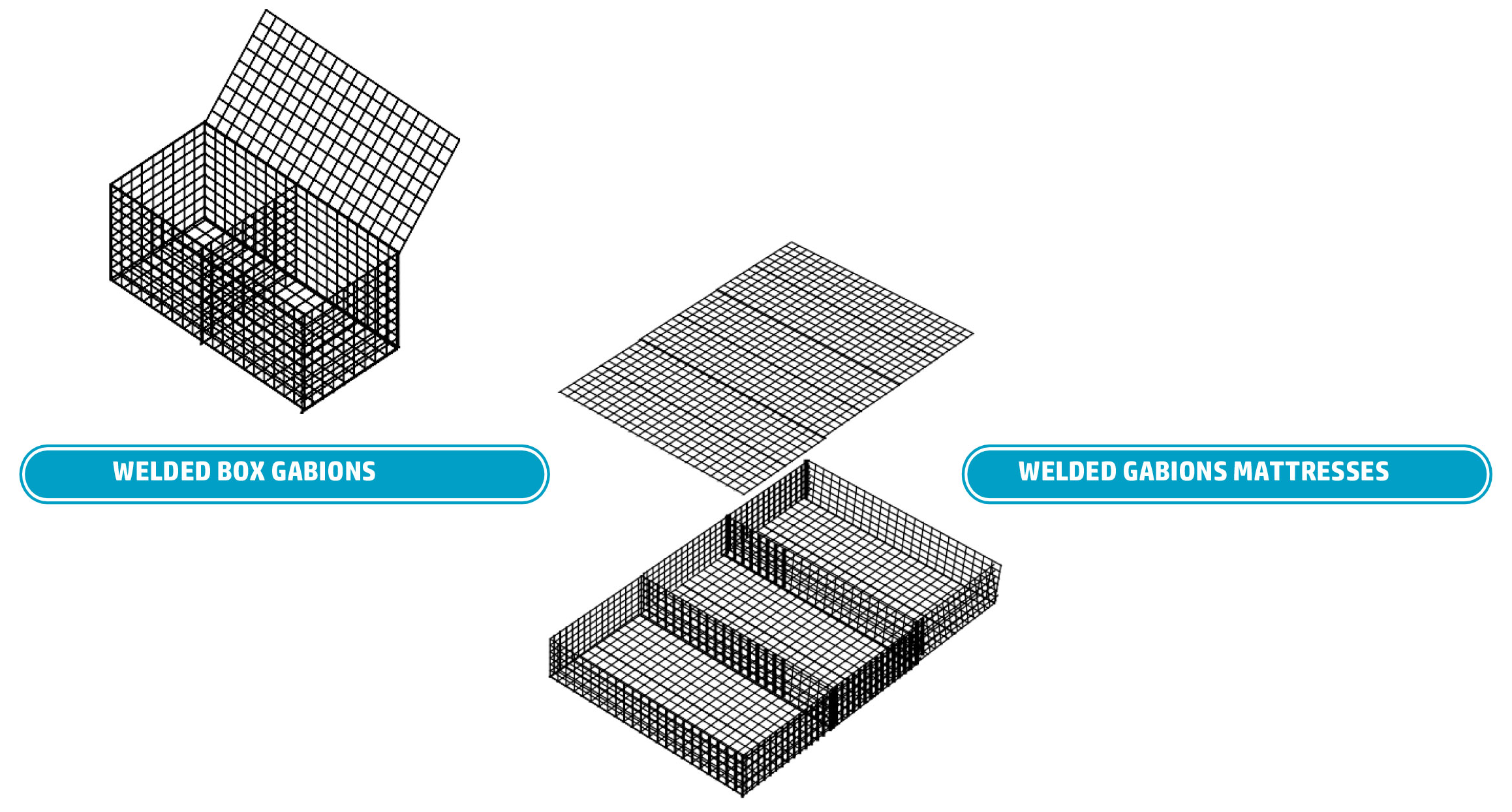

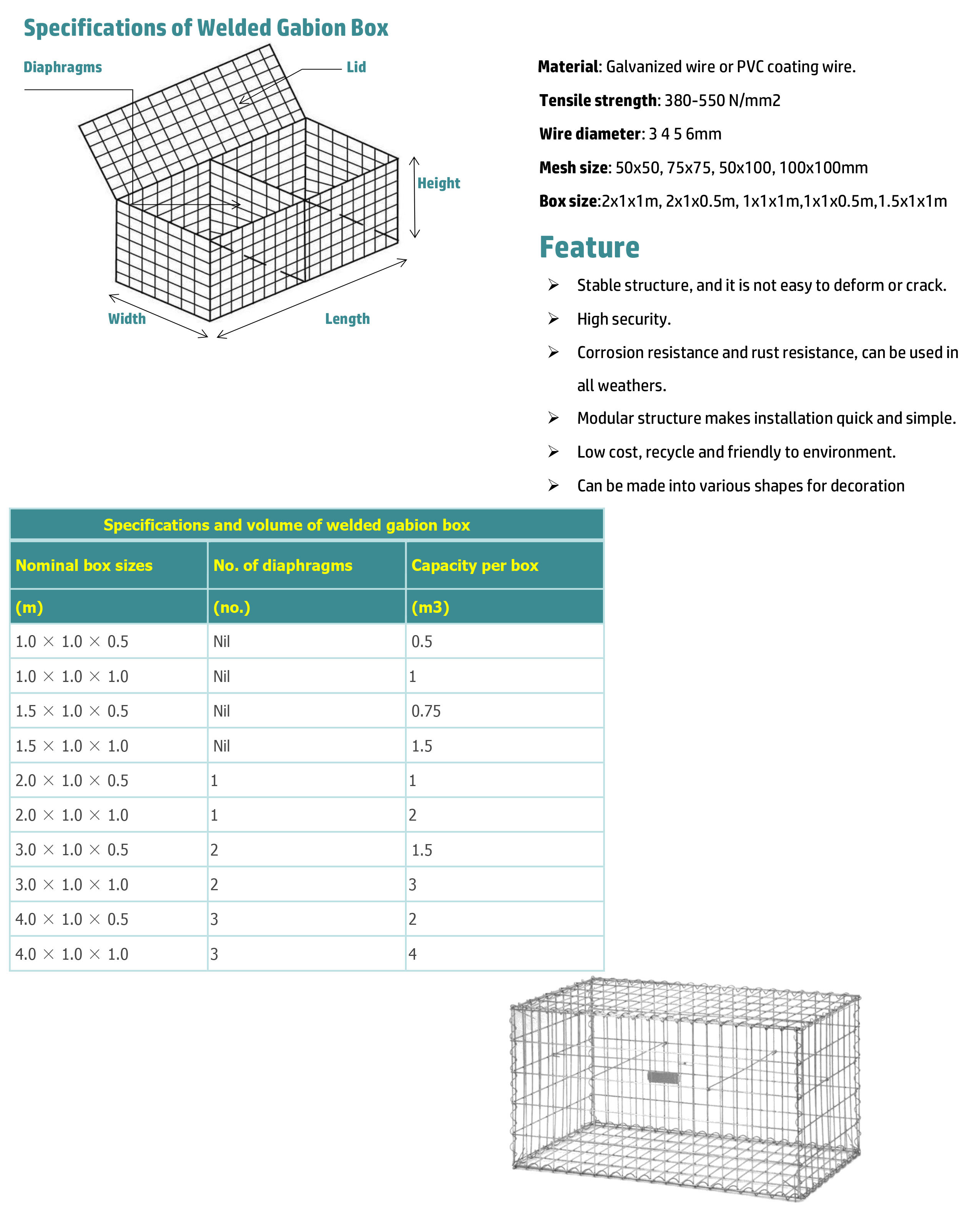

WELDED GABION BOX

WELDED GABION BOX is made of steel wire with high tensile strength, then the wires are welded into a panel. Afterward we can use some mounting connections to assemble them quickly, such as hog ring connection, spiral joints connection, U clip connection and hook connection. The use of these accessories can reinforce the welded gabion box, making it is not easy to deform

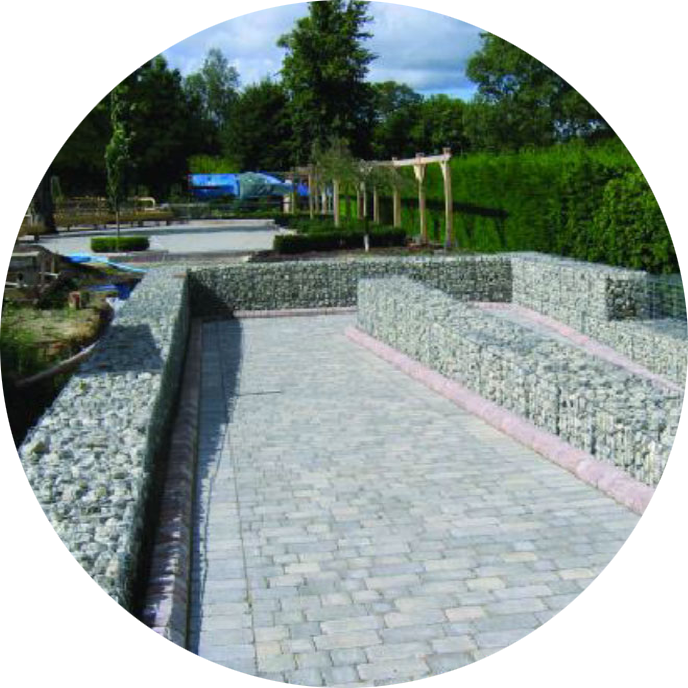

Because of this reason, compared with hexagonal mesh gabion box, welded gabion box is able to keep its shape and fit well with the target. In recent years, welded gabion box has become more and more popular in the decoration of garden and landscape, it can be used as a flowerpot, frep
